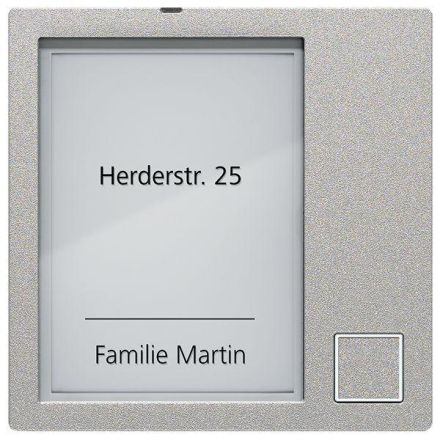

Bell button module with 1 button for outdoor stations with individual configuration, flush-mounted installation, can be integrated behind 3 mm front panels, flush-mounted installation for front panels from 1.5 mm to 2.5 mm using the enclosed spacer plates, visible front dimensions 82 mm x 82 mm (cutout), module grid spacing 120 mm, connection via the 4-pin service socket of the built-in door loudspeaker module or to the display module, additional connection for outgoing connection to the next module, white LED background lighting, display of programming mode and device errors using different flashing modes, the functions light, 2x door call, control function or door opener can be programmed for each call button, name plate glass can be opened using the WinClip mechanism and removed to the front, dimensions: H 105 x W 105 x D 20, material: aluminum, anodized silver, name plate acrylic glass
