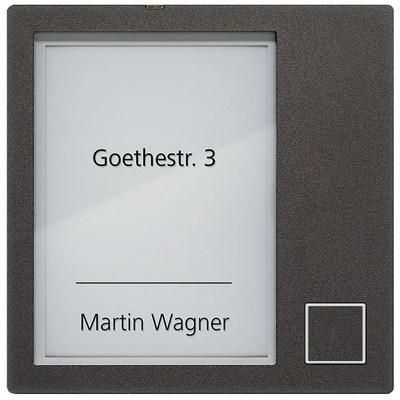

Bell button module for outdoor stations with individual configuration, flush-mounted installation, can be integrated behind 3 mm front panels, flush-mounted installation for front panels from 1.5 mm to 2.5 mm using the spacer plates provided, visible front dimensions 82 mm x 82 mm (cut-out), module grid spacing 120 mm, combination with TCS:BUS speech module AMI11110 using a 4-pin connector, compatibility mode using a uniform AS address for operation with built-in door loudspeaker module AMI11100 or with display module AMI1010x, saving the button function in the module, switching to compatibility mode using the TCSK or configo service device, name plate glass can be opened and removed to the front, name plate film included, templates for printing the name plate at: Download > Labeling templates > for outdoor stations of the AMI series, white LED background lighting of the nameplate, can be switched on/off permanently or brightness-dependent via brightness sensor in the TCS:BUS speech module AMI11110, backlit bell button(s), status linked to lighting of the nameplate, display of programming mode and device error through different flashing modes, the functions light, 2x door call, control function or door opener can be programmed for each bell button, programming manually or via service device TCSK, supply of the entire AMI outdoor station in 3-wire operation required, dimensions: H 105 x W 105 x D 20, material: black anodized aluminum, nameplate glass plexiglass
| Property | Value |
| Installation technology: | Bus system |
| Color: | black |
| Number of bell buttons: | 1 |
| Width: | 105 mm |
| Height: | 105 mm |
| Depth: | 20 mm |
| Design: | Push button |
