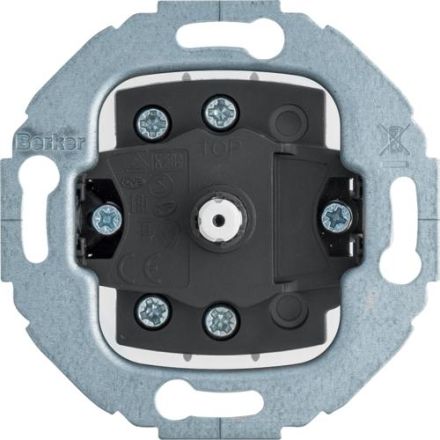

Berker 387603 rotary switch, off/change, 1930/glass/R.cla

Berker 387603 rotary switch, off/change, 1930/glass/R.cla

In stock

SKU: 510341

Price on request

€28.69

€0

Overview

Rotary switch, off/changeover, series 1930/glass/R.classic Rotary switch with screw terminals. Rated voltage: 250 V AC Switching current: 10 AX Main design line: series 1930/glass/R.classic Material: plastic/metal

Property	Value
Suitable for protection class (IP):	IP20
Circuit type:	Changeover switch
Operation type:	Rotary knob
Mounting type:	Flush-mounted
Push button:	no
Composition:	Base element
Fastening type:	Claw fastening
Material:	other
Material quality:	other
Halogen-free:	yes
Surface:	other
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Lighting:	optional
Lighting type:	other
Lighting function:	other
Rated current:	10 A
Installation depth:	32 mm
Device depth:	42 mm
Device width:	71 mm
Device height:	71 mm
With mounting plate:	no
Text field/labeling area:	no
Min. depth of device box:	35 mm
