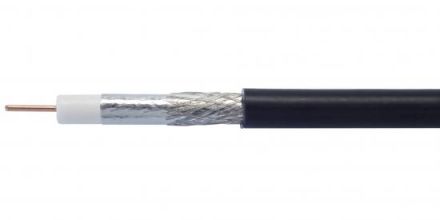

Kathrein 21510030 LCM 14A+ 100m bundle coaxial cable

In stock

SKU: 537567

Price on request

€3.93

€0

Overview

LCM 14A+ coaxial cable, 100 m coaxial cable 10.4 mm, black, halogen-free/flame-retardant, 100 m bundle, shielding: typically 120 dB, meter mark, attenuation/100 m: 13 dB (860 MHz), 21 dB (2150 MHz) inner conductor: 1.63 mm Cu, insulation: 7.2 mm Cell-PE, outer conductor: Al foil + braid, UV-resistant, fire class according to BauPVO EN 50575: Dca s1a d1a1

Property	Value
Sheath color:	black
Outer diameter approx.:	10.4 mm
Dielectric:	Polyethylene, foamed (Foam PE)
Outer conductor shape:	Foil + braid
Characteristic impedance:	75 Ohm
Inner conductor diameter:	1.63 mm
UV-resistant:	yes
Sheath material:	Polyvinyl chloride (PVC)
Outer conductor diameter:	10.4 mm
Inner conductor material:	Copper
Inner conductor class:	Class 1 = single wire
Outer conductor material:	Copper
Reinforcement:	no
Permissible external cable temperature during assembly/handling:	-25 to 55 °C
Permissible External cable temperature after installation without vibration:	-40 to 70 °C
Halogen-free according to EN 60754-1/2:	yes
Min. permissible bending radius, flexible use with forced guidance:	220 mm
Inner conductor surface:	bare
Outer conductor surface:	tinned
Number of shielding layers:	3
Specification of sheath material:	other
Fire behavior class according to EN 13501-6:	Dca
Smoke development class according to EN 13501-6:	s1a
Drip behaviour class according to EN 13501-6:	d1
Acid development class according to EN 13501-6:	a1
Min. permissible bending radius, flexible use/free movement:	220 mm
Min. permissible bending radius, stationary use/fixed installation:	110 mm
Laying in the ground:	no
