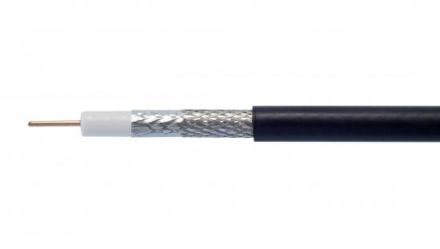

Kathrein 21510035 LCM 17 A+ 10.4mm 120dB black coaxial cable sold by the meter

In stock

SKU: 537463

Price on request

€2.37

€0

Overview

LCM 17 A+ coaxial cable, 500m coaxial cable, sold by the meter, 10.4 mm, suitable for underground installation, shielding factor typically 120 dB, meter marking, class A+, construction: 1.63 Cu/7.2 Al/CuSn/Al, black PE, fire class according to BauPVO EN 50575: Fca

UV-resistant:

Property	Value
Sheath color:	black
Outer diameter approx.:	10.4 mm
Dielectric:	Polyethylene, foamed (Foam PE)
Outer conductor shape:	Foil + braid
Shaft impedance:	75 Ohm
Inner conductor diameter:	1.63 mm
yes
Sheath material:	Polyvinyl chloride (PVC)
Outer conductor diameter:	10.4 mm
Inner conductor material:	Copper
Inner conductor class:	Class 1 = single-wire
Outer conductor material:	Copper
Reinforcement:	no
Permissible external cable temperature during assembly/handling:	-25 to 55 °C
Permissible External cable temperature after installation without vibration:	-40 to 70 °C
Halogen-free according to EN 60754-1/2:	no
Min. permissible bending radius, flexible use with forced guidance:	220 mm
Inner conductor surface:	bare
Outer conductor surface:	tinned
Number of shielding layers:	2
Specification Sheath material:	other
Fire behavior class according to EN 13501-6:	Fca
Smoke development class according to EN 13501-6:	without
Drip behavior class according to EN 13501-6:	without
Acid development class according to EN 13501-6:	without
Min. permissible bending radius, flexible use/free movement:	220 mm
Min. permissible bending radius, stationary use/permanently installed:	110 mm
Laying in the ground:	yes
