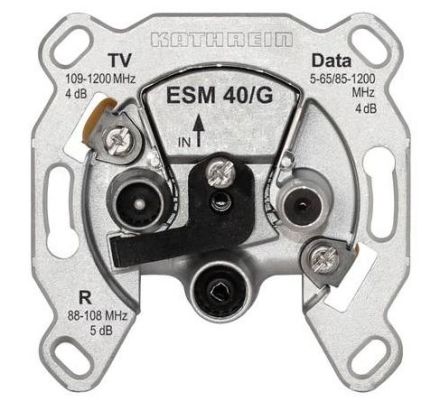

ESM40G modem single socket, 3-way selective
Features Comply with: EN 60728-11 and EN 50083-2 For interactive CATV/HFC networks Very high decoupling between the modem connection and TV/radio connection prevents interference with TV/radio reception by the modem Ingress noise blocking function prevents unwanted interference signals from entering the subscriber terminals Selective signal distribution between TV and radio connection Integrated solution without plug-in filter, thus high protection of the system against subsequent manipulation by the subscriber Stable die-cast housing With screw and claw fastening, suitable for flush-mounted sockets with a diameter of 55-65 mm Can be combined with almost all installation programs Connections: TV - IEC (Sti) Radio - IEC (Bu) Modem - F (Bu) Class A Packaging unit/weight (pcs./kg) : 10 (50) /1.1 ESM 40/G Single connection box for spur line and star distribution systems with very low connection attenuation (4 dB, return path: 1 dB) ESM 41/G, ESM 42/G Directional coupler boxes for loop-through systems, connection attenuation: ESM 41/G: 14 dB, ESM 42/G: 10 dB
