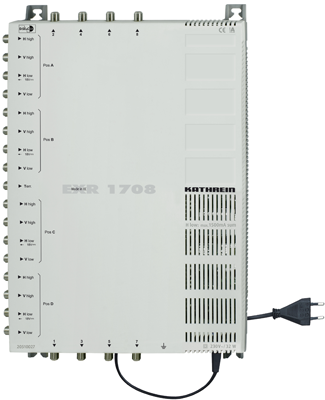

Design features active switching matrix, number of SAT antenna inputs: 16, number of terrestrial antenna inputs: 1, 8 x subscriber outputs, cascadable switch, integrated signal amplifier, performance characteristics, frequency response lower limit, SAT: 950 MHz, frequency response upper limit, SAT: 2150 MHz, frequency response lower limit, terr.: 5 MHz, frequency response upper limit, terr.: 862 MHz, decoupling of the outputs: 25 dB, decoupling of the inputs: 25 dB, min. connection attenuation, terr.: 10 dB, max. connection attenuation, terr.: 13 dB, min. connection attenuation, SAT: 5 dB, max. connection attenuation, SAT: 0 dB, min. LNC switching voltage: 14 V, max. LNC switching voltage: 18 V, 22 KHz switching frequency, 0 KHz switching frequency, VHF shielding: 85 dB, UHF shielding: 75 dB, SAT IF shielding: 55 dB, tone burst control (Mini-DiSEqC), DiSEqC control, short circuit/overload protection, power consumption/voltage supply, LNC power supply via integrated. Power supply unit, max. LNC voltage supply: 18 V, max. LNC current consumption: 1500 mA, current consumption per participant: 30 mA, housing properties, width: 24.9 cm, height: 38.8 cm, depth: 4.5 cm
| Property | Value |
| LNB power supply: | 14 V / 18 V |
| Number of inputs: | 17 |
| Participant connections: | 8 |
| Terrestrial input: | active |
| Cascadable: | yes |
| 22 kHz generator: | no |
