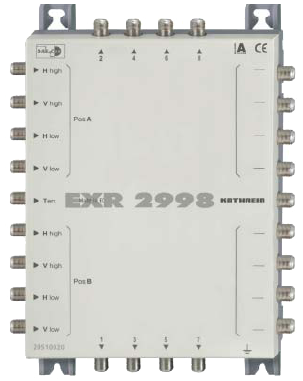

Cascadable multi-switch for distributing 8 satellite levels and terrestrial signals to many receivers. Only one down-lead is required per receiver (two down-leads for twin receivers). Independent selection of horizontal/vertical, low/high, satellite position A/position B from each receiver using DiSEqC control. When controlled without DiSEqC, switching horizontal/vertical, low/high from satellite position A is possible, and with tone burst also satellite position A/position B. Integrated amplifier for low connection attenuation in the satellite range. Integrated pre-emphasis to equalize cable attenuation. Terrestrial range can be received even when the satellite receiver is switched off. Terrestrial range: 5-862 MHz, passive. High level of decoupling between the outputs. Remote feed option via the horizontal low inputs. All other inputs are voltage-free (therefore operation with UAS 485 is possible). For indoor installation. Multiswitch passage for system expansion by eight connections each. High cascading capability (up to 40 connections).
