Kathrein OCC25 optical patch cable 25m

In stock
SKU: 1181
€52.16
Into a basketIn the basketGo

Overview

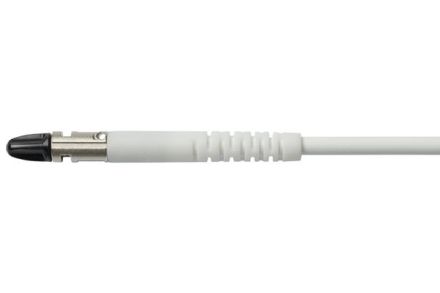

OCC 25 Optical Patch Cable CLIK! 25mOptical Patch Cable CLIK! Length: 25 meters, CLIK! connectors, miniaturized, space-saving design, diameter < 5 mm, towing eye, halogen-free

Property Value
Outer diameter approx.: 5 mm
Sheath color: white
Fiber type: Singlemode 9/125
Core type: Full-loader
Number of fibers per core: 1
With Strain relief: no
Reinforcement: no
Sheath material: other
Cable metal-free: yes
Low smoke according to EN 61034-2: yes
Chemically resistant: yes
Blow-in: no
Number of fibers: 1.00
Halogen-free according to EN 60754-1/2: no
Oil-resistant according to EN 60811-404: yes
Category: OS1
Specification of sheath material: other
Cable longitudinally watertight: no
Cable transversely watertight: no
Fire behavior class according to EN 13501-6: Fca
Drip behaviour class according to EN 13501-6: without
Acid development class according to EN 13501-6: without
UV-resistant: no
Min. permissible bending radius, stationary use/permanently installed: 15 mm
Laying in the ground: no

Characteristics

Sheath materialOther
Outer diameter approx.5 mm
Oil-resistant according to EN 60811-404Yes
CategoryOS1
ManufacturerKathrein
HAN20510081
GTIN4021121518485
Coat colorWhite
With strain reliefNo
UV-resistantNo
