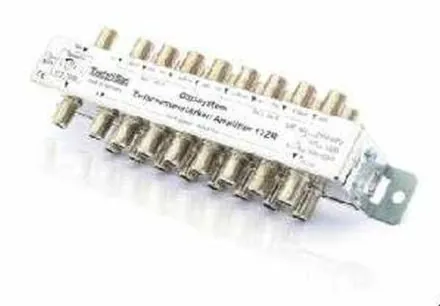

The 17Z repeater has an active slope equalization of 7 to 13 dB. It is used wherever there is a need to increase the level of signals. This component can be used at any time between the cascades or the individual taps. The amplifier is powered remotely via the main lines of the basic device 17/8 G.
| Property | Value |
| Type: | Amplifier |
| Color: | silver |
| EAN: | 4019588032699 |
| Manufacturer No.: | 0000/3269 |
| Device type: | Amplifier |
| Amplification: | 12 dB |
| Frequency range: | 47 - 2150 MHz |
| Decoupling: | 40 dB |
| Inputs: | 16x F-connector |
| Ambient temperature: | 25 - 55 ° |
| Max. Current consumption: | 180 mA |
| Feature: | Support for 4 orbital positions, terrestrial input |
| Accessories: | Including, user manual |
| Dimensions: | Width: 58 mm x Height: 45 mm x Depth/Length: 212 mm |
| Weight: | 300 grams |
