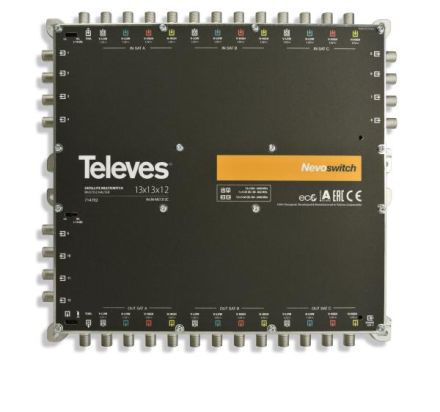

Nevo multiswitch 13in12 in a cast housing, cascadable, terminating resistors can be switched on and off in each individual and cascade switch, 10dB input gain switch for all SAT inputs can be switched on/off. Through loss SAT: 6dB / Terr.: 3dB, SAT TN attenuation 1-8/9-16/17-24/25-32 = 950 MHz 8/11/-/- and 2400MHz 3/6/-/- dB, Terr. TN attenuation 1-8/9-16/17-24/25-32 = 2/5/-/- RK TN attenuation 40dB, DC pass-through on vertical low and terr., max. input level Sat 102 / Terr. 104 dBµV, power supply required (MS-NT1228), power consumption power supply 210mA, Sat receiver 33mA, dimensions (WxHxD) = 280x253x30mm
