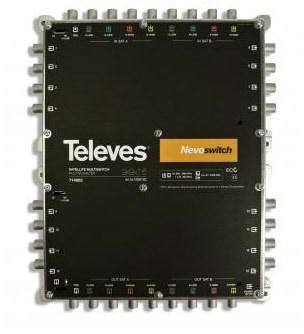

Design features Switching matrix: active switching matrix Number of inputs: 9 Number of subscriber outputs: 16 Cascadable switch: yes Return channel capable: yesPerformance characteristics Lower limit of frequency response, SAT (MHz) : 950 Upper limit of frequency response, SAT (MHz) : 2400 Gain, SAT (dB) : 10 Max. operating input level, SAT (dBV) : 102 Max. operating input level, terr. (dBV) : 104 Decoupling of the outputs (dB) : 25 Through loss, SAT (dB) : 6 Through loss, terr. (dB) : 3 LNC switching voltage 12 V: yes min. ambient temperature (-°C) : 5 max. ambient temperature (+°C) : 45Power consumption/voltage supply Current consumption per participant (mA) : 33Housing properties Width (cm) : 20.8 Height (cm) : 25.3 Depth (cm) : 3 Weight (kg) : 1.6
