Televes OSK50S opt.fiberglass cable 50m with connection

In stock

SKU: 1144

Price on request

€55.38

€0

Overview

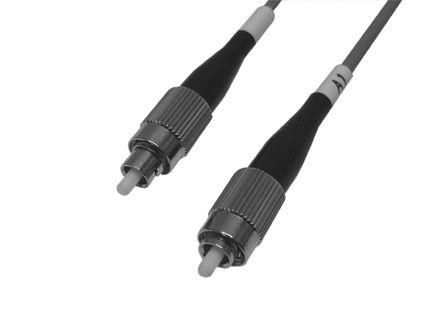

Single-mode (SM) fiber optic patch cable pre-assembled with FC/PC connectors for connecting units in an optical SAT IF installation. Equipped with a shielded stainless steel tube around the fiber optic cable as well as an aramid braid strain relief (Kevlar) and a UV-resistant LSFH jacket. The cable can therefore be used outdoors and underground.

Property	Value
Outer diameter approx.:	3 mm
Sheath color:	gray
Fiber type:	Singlemode 9/125
Core type:	Full-loader
Number of fibers per core:	1
With strain relief:	yes
With Rodent protection:	no
Reinforcement:	yes
Sheath material:	Polyvinyl chloride (PVC)
Metal-free cable:	no
Flame-retardant:	no
Low smoke according to EN 61034-2:	yes
Chemically resistant:	no
Blow-in:	no
Number of fibers:	1
Halogen-free according to EN 60754-1/2:	yes
Oil-resistant according to EN 60811-404:	no
Category:	OS2
Specification of sheath material:	other
Cable longitudinally watertight:	yes
Cable transversely watertight:	yes
UV-resistant:	no
Min. permissible bending radius, stationary use/permanently installed:	30 mm
Laying in the ground:	no
