Televes SK6Fplus coaxial cable 1.0/4.6mm 3-way 100m

In stock
SKU: 631
€0.49
Into a basketIn the basketGo

Overview

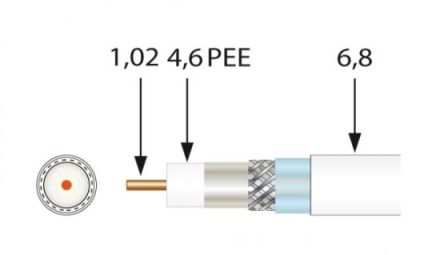

Coaxial cable 1.0/4.6 mm, triple shielded 100 m reel, 1.0/4.6/6.6 mm, Staku inner conductor, 96 aluminum braid, 19.2 dB / 800 MHz / 31.2 dB / 2050 MHz

Property Value
Sheath color: white
Outer diameter approx.: 6.8 mm
Dielectric: Polyethylene, foamed (Foam PE)
Outer conductor shape: Foil + braid
Characteristic impedance: 75 Ohm
Inner conductor diameter: 1.02 mm
UV-resistant: no
Sheath material: Polyvinyl chloride (PVC)
Outer conductor diameter: 4.6 mm
Inner conductor material: Iron
Inner conductor class: Class 1 = single wire
Outer conductor material: Aluminum
Reinforcement: no
Permissible external cable temperature during assembly/handling: -5 to 60 °C
Permissible Cable external temperature after installation without vibration: -15 to 65 °C
Halogen-free according to EN 60754-1/2: no
Inner conductor surface: copper-plated
Outer conductor surface: bare
Number of shielding layers: 3
Specification of sheath material: other
Fire behavior class according to EN 13501-6: Eca
Smoke development class according to EN 13501-6: without
Drip behaviour class according to EN 13501-6: without
Acid development class according to EN 13501-6: without
Min. permissible bending radius, stationary use/permanently installed: 34 mm
Laying in the ground: no

Characteristics

Sheath materialPolyvinyl chloride (PVC)
Outer diameter approx.6.8 mm
Minimal order100 meters
ManufacturerTeleves
HAN414801
GTIN8424450170106
Coat colorWhite
UV-resistantNo
Televes SK6Fplus coaxial cable 1.0/4.6mm 3-way 100m
Televes SK6Fplus coaxial cable 1.0/4.6mm 3-way 100m
€0.49
