Catalog

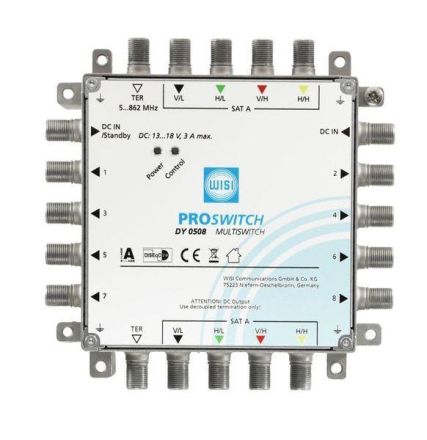

WISI 73621 DY 0508 Proswitch 5 in 8 without power supply multiswitch

In stock
SKU: 766176
€121.89
Into a basketIn the basketGo

Overview

The DY 0508 is a cascade multiswitch with 5 inputs for the distribution of a satellite and terrestrial signals. Using the optionally available power supply DY 70, which ensures the LNB power supply, the multiswitch can also be used as a stand-alone device. The levels are available on 5 cascade outputs for subsequent multiswitches. Commercially available DVB-S/S2 receivers or TV sets with integrated receivers can be operated on the 8 subscriber outputs. Terrestrial signals such as DVB-T/T2, DAB or FM are also available on each subscriber output. The standby function minimizes energy consumption by activating the multiswitch only when the receiver is switched on.

Property Value
LNB power supply: 12 V
Number of inputs: 5
Number of trunk outputs: 8
Subscriber connections: 8
Terrestrial input: passive
Cascadable: yes
Power supply: without
Max. current consumption: 2.5 mA
Control signal: 14/18 V, DiSEqC, 0/22 kHz
22 kHz generator: no

Characteristics

Number of inputs5
HABDY 0508 Proswitch 5 in 8 without power supply
ManufacturerWISI
HAN73621
GTIN4010056740221
WISI 73621 DY 0508 Proswitch 5 in 8 without power supply multiswitch
WISI 73621 DY 0508 Proswitch 5 in 8 without power supply multiswitch
€121.89
