WISI DRR0516 Flexswitch 5/16 Multiswitch

In stock
SKU: 231400
€137.06
Into a basketIn the basketGo

Overview

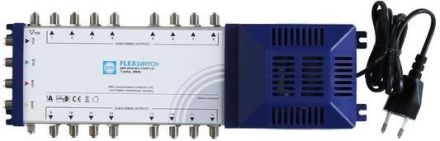

The DRR 0516 is a receiver-powered multi-switch with 5 inputs for the distribution of a satellite and terrestrial signals. Commercially available DVB-S/S2 receivers or TV sets with integrated receivers can be operated on the 16 subscriber outputs. Terrestrial signals such as DVB-T/T2, DAB or FM are also available on each subscriber output. The DRR 0516 impresses with its low connection loss, which is achieved through the active satellite branch. Multimedia services such as ...LAN over Coax... or signals from community systems can be fed in via the passive terrestrial branch. The LNB power supply is ensured via connected receivers, so the multiswitch does not require an additional power supply and the operating costs are particularly low.

Property Value
LNB power supply: 12 V
Number of inputs: 5
Subscriber connections: 16
Terrestrial input: passive
Cascadable: no
Power supply: not required
Max. current consumption: 305 mA
22 kHz generator: no

Characteristics

Number of inputs5
ManufacturerWISI
HAN74974
GTIN4010056749743
