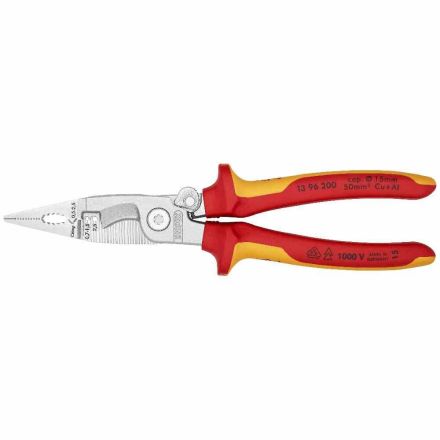

Knipex 0307511 VDE installation pliers with opening spring head, chrome. (1396200)

In stock
SKU: 412499
€52.52
Into a basketIn the basketGo

Overview

Multifunctional pliers for electrical installation, for gripping flat and round material, bending, deburring, cutting cables, stripping and crimping wire end ferrules 6 functions in one pair of pliers smooth gripping surfaces on the tip for damage-free gripping of individual wires, profiled gripping surfaces and burner hole for gripping flat and round material distinctive outer edge on the jaw for working on flush-mounted boxes and deburring feed-through holes Stripping holes for conductors 0.75 - 1.5 mm² and 2.5 mm² Crimping nest for wire end ferrules 0.5 - 2.5 mm² Cable shears with precision cutting edges (induction hardened) for Cu and Al cables up to 5 x 2.5 mm² / Ø 15 mm gripping without fully opening the pliers. The blade remains closed and protected. Slim design for good accessibility. Screwed joint: precise, play-free movement of the pliers. Special tool steel in special quality, forged, oil-hardened. The activated locking pawl keeps the blades closed while the other functions remain intact. With the intelligent locking mechanism, you can 'grip' without opening the pliers. The blade remains closed and protected. NYM cable up to 5 x 2.5 mm². Cable shears with precision cutting for cables up to Ø 15 mm, cuts e.g.

PropertyValue
Weight (kg):0.30
Length (mm):200
Gross length (mm):217
Gross width (mm):80
Gross height (mm):33
Insulated:yes
Protective insulation 1000 V:yes
VDE tested:yes
With impact protection:no
Version low sparking:no
Handle design:2-components

Characteristics

VDE testedYes
Low-spark versionNo
HAB307511
ManufacturerKnipex
HAN1396200
GTIN4003773075110
Gross width (mm)80
Gross height (mm)33
Gross length (mm)217
Weight (kg)0,30
Handle design2 components
IsolatedYes
Length (mm)200
Protectively insulated 1000 VYes
