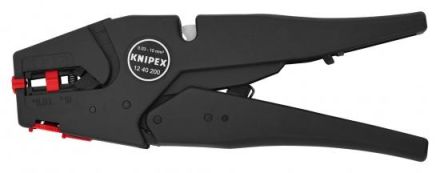

Knipex 12 40 200 200mm self-adjusting wire stripping pliers

In stock
SKU: 549584
€59.12
Into a basketIn the basketGo

Overview

12 40 200 Self-adjusting stripping pliers For single, multi- and fine-stranded conductors with plastic or rubber insulation. Automatically adjusts to the different conductor cross-sections: no damage to the conductors. Cutting depth adjustable for different insulation materials. With wire cutter for copper and aluminum conductors, multi-stranded up to 10 mm² and single-stranded up to 6 mm². Smooth mechanics. Blade and plastic clamping jaws are easy to replace. Low weight. For thin ribbon conductors up to 10 mm wide in one operation. - Stripping values square millimeters: 0.03 - 10.0mm² - Length stop: 3 - 18mm - AWG: 32 - 8. Stripping pliers, 0.03-10mm², 1-component

PropertyValue
Gross length (mm):2000
Gross width (mm):950
Gross height (mm):210
Insulated:no
Protective insulated 1000 V:no
VDE tested:no
With impact protection:no
Stripping range AWG:7...32
Notch depth adjustable:no
Longitudinal cut:no
Round cut:no
Spiral cut:no
Stripping range diameter (mm):3...18
Stripping range cross section (mm²):0.03...10
Stripping length adjustable:no
Handle design:1-component
With wire cutter:no

Characteristics

VDE testedNo
HAB200mm self-adjusting
ManufacturerKnipex
HAN12 40 200
GTIN4003773026662
Gross width (mm)950
Gross height (mm)210
Gross length (mm)2000
Handle design1-component
IsolatedNo
Protectively insulated 1000 VNo
Knipex 12 40 200 200mm self-adjusting wire stripping pliers
