With base plateNo
HAB611978.0031
HAN6119780031
GTIN4051859151685
Connection typeScrew terminal

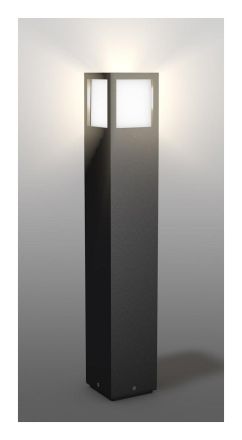

Type of lampBollard light
Type of wiringDiploma
Rated lifetime L70/B50 at 25 °C25000 hours
Rated luminous flux according to IEC 62722-2-1390lm
Operating deviceLED control gear current controlled
Width108 mm
Color temperature3000K
Color rendering index CRI80-89
VersionWithout
Suitable for lamp power12W
Suitable for number of lamps1
Housing colorAnthracite
Height/Depth650 mm
LED nominal current at constant current50 to 60 mA
Conductor cross-section1.50 mm²
LampsLED not replaceable
Light colorWhite
Light distributorWithout
Length108 mm
Max. system performance12W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage200 to 240 V
SurfacePowder coated
Number of poles3
Impact resistanceIK06
IP protection)IP54
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialAluminum
