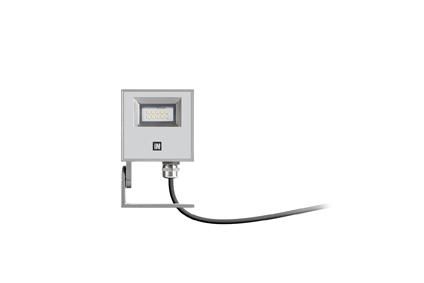

Spittler 304610 spotlight 3000K 10 W power LED symmetrical extra wide scattering optics

In stock
SKU: 313970
€72.88
Into a basketIn the basketGo

Overview

LED spotlight for indoor and outdoor use, comprising: Die-cast aluminum housing, painted / Adjustable boom, die-cast aluminum, painted / Diffuser made of extra-clear tempered flat glass, with internal screen printing / Aluminum reflector / LED modules 220-240V 50/60 Hz protected against overvoltage up to 500V / External screws made of stainless steel / Gland M16x1.5 for cables 5 - 10 mm / With 1 meter cable H05RN-F 3G1 mm / Ground spike made of technopolymer for ground fixing available, narrow beam, mounting plate, with mounting bracket FOCUS+ LED spotlight, 10W, 1LED, 3000K, 611lm, IP65, anthracite, matt, converter included,

Feature Value
Design: Mounting plate
Series name: FOCUS+
Housing color: anthracite
Housing material: Aluminum
Luminous flux (lm): 611
Socket: other
Gross length (mm): 154
Gross width (mm): 104
Protection class: IP65
incl. Light source: yes
Mounting type: surface-mounted
Protection class: I
Dimmable: no
Surface finish: matt
Beam angle (value): narrow beam
Ball-proof: no
Operating device: not required
Operating device included: yes
Fire protection 'D': no
Fire protection 'F': yes
Fire protection 'FF': no
Installation in insulated ceilings: no
Electrical connection with plug-in system: no
Colour of the cover: without
Suitable for through-wiring: no
Suitable for Number of bulbs: 1
Suitable for lighting accessories: no
Height/depth (mm) : 30
Lamp wattage (W) : 10
Bulb: LED
Light distribution: symmetrical
With motion detector: no
With mounting bracket: yes
Furniture installation: no
Furniture installation: no
Nominal voltage from/to (V): 220

Characteristics

HAB304610
ManufacturerSpittler
HAN304610
GTIN8018367638059
VersionMounting plate
Surface finishFrosted
Operating deviceNot required
DimmableNo
Electrical connection with plug-in systemNo
VersionOther
Suitable for number of lamps1
LampsLED
Light distributionSymmetrical
With motion detectorNo
Mounting typeCultivation
Protection classIP65
Protection classI
Series nameFOCUS+
Spittler 304610 spotlight 3000K 10 W power LED symmetrical extra wide scattering optics
Spittler 304610 spotlight 3000K 10 W power LED symmetrical extra wide scattering optics
