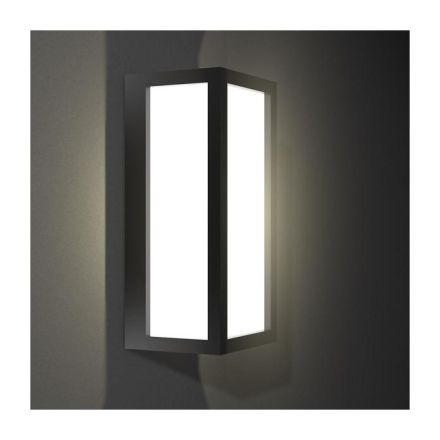

Rzb 611980.0031 LED wall light 19W HOME101 3000K A+ 690lm

In stock
SKU: 488204
€97.04
Into a basketIn the basketGo

Overview

Self-cleaning of the opal cover through water drainage behind the frame struts. Wall light with direct light emission. Housing made of powder-coated die-cast aluminum. Diffuser made of opal plastic (polycarbonate). Light source (mains voltage LED module) included in delivery. Energy efficiency class A+

>no
Property Value
Max. System power: 13 W
Rated luminous flux according to IEC 62722-2-1: 810 lm
Suitable for number of lamps: 1
Length: 110 mm
Width: 103 mm
Height/depth: 250 mm
Protection rating (IP): IP54
Protection class: I
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 200 to 240 V
Housing color: anthracite
Housing material: aluminum
Color temperature: 3000 K
Impact resistance: IK06
Color rendering index CRI: 80-89
Suitable for ceiling mounting: no
Suitable for wall mounting: yes
Voltage type: AC
With motion detector: no
Beam angle: free beam/diffuse
With light source: yes
Light source: LED not replaceable
Rated ambient temperature according to IEC62722-2-1: -20 to 25 °C
Socket: other
Connection type: screw terminal
With operating device: yes
Cover material: opal plastic
Light distributor: without
Without dimming function: yes
Light emission: direct/indirect
Light distribution: asymmetrical
With light sensor: no
Operating device: LED operating device, current-controlled
Suitable for recessed mounting: no
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for light strip configuration: no
Suitable for Pendant suspension: no
Suitable for surface mounting: yes
Suitable for emergency lighting: no
Design of the grid: without
Covering of the lamp with thermal insulation material possible: yes
DMX dimming: no
DSI dimming: no
With air slots: no
Dimming LineSwitch: no
Dimming potentiometer (device integrated): no
Dimming 0-10 V: no
Dimming GPRS:
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Dimming depending on operating device: no
Rated service life L70/B50 at 25 °C: 25000 h
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 850 °C - 30 s
Suitable for lamp power: 13 W
Luminaire luminous efficacy: 63 lm/W
Wiring type: Termination
Number of poles: 3
Conductor cross-section: 1.50 mm²

Characteristics

HAB611980.0031
ManufacturerRZB
HAN6119800031
GTIN4051859151708
Covering the luminaire with thermal insulation material possibleYes
Connection typeScrew terminal
Type of wiringDiploma
Execution of the gridWithout
Beam angleFree-radiating/diffuse
Rated lifetime L70/B50 at 25 °C25000 hours
Rated luminous flux according to IEC 62722-2-1810lm
Rated ambient temperature according to IEC62722-2-1-20 to 25 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width103 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for lamp power13 W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorAnthracite
Glow wire test according to IEC 60695-2-11850 °C - 30 s
Height/Depth250 mm
Conductor cross-section1.50 mm²
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy63lm/W
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorWithout
Light distributionAsymmetrical
Length110 mm
Max. system performance13 W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage200 to 240 V
Without dimming functionYes
Number of poles3
Impact resistanceIK06
IP protection)IP54
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialAluminum
