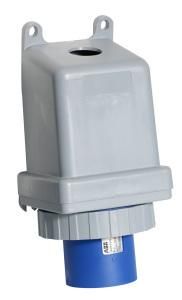

ABB Stotz-Kontakt 263BS6W, wall plug, 63 A, IP67 6h, 2P+E, 2CMA167340R1000

In stock
SKU: 203109
€180.55
Into a basketIn the basketGo

Overview

Industrial connectors are the solution for industrial sectors with high demands on safety, durability, reliability and cost savings for the end user. The range consists of IP44 and IP67 devices from 16 A to 125 A, from simple plugs to flexible customer-specific combination solutions. The products follow an ergonomic and robust design, are quick to assemble and have a long service life. The range covers all current clock positions. The connectors are approved according to IEC 60 309-1, 2- and -4. Country-specific approvals are also available on request.

PropertyValue
IEC current:63 A
UL/CSA current (if UL version required):63 A
Number of poles:3
Connection technology:screw terminal
Plug direction:angled
Voltage according to EN 60309-2:200-250 V (50+60 Hz) blue
Time setting:6 h
Identification color:blue
Protection class (IP):IP67
Material:Plastic
Phase inverter:no
Design:Surface-mounted device plug
Military version:no
RAL number:7001
Rated voltage:200 to 250 V
Rated frequency:50 to 60 Hz

Characteristics

Rated frequency50 to 60 Hz
Phase inverterNo
HAB263BS6W
ManufacturerABB Stotz-Kontakt
HAN2CMA167340R1000
GTIN7392696673402
Connection technologyScrew terminal
DesignSurface-mounted device plug
Rated voltage200 to 250 V
IEC current63 A
Identification colorBlue
Military versionNo
Number of poles3
RAL number7001
IP protection)IP67
Voltage according to EN 60309-2200-250 V (50+60 Hz) blue
Plug directionAngled
UL/CSA current rating (if UL version required)63 A
Time position6 hours
MaterialPlastic
ABB Stotz-Kontakt 263BS6W, wall plug, 63 A, IP67 6h, 2P+E, 2CMA167340R1000
