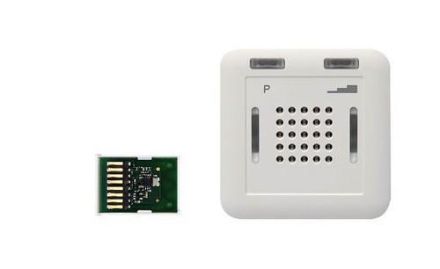

Device combination consisting of plug-in radio transmitter board RTS9004E and socket radio chime RCP24E for optical-acoustic signaling of a door call, Consisting of, 1x socket radio chime RCP24E FFL0005-0000, 1x plug-in radio transmitter board RTS9004E FFL0004-0000, 1x removal tool, radio signal device SmartSlot FFL3200-0, Product features:, Device combination consisting of socket radio chime (receiver) and plug-in radio transmitter board, optical-acoustic signaling of a door call, 12 ring tones, each in 3 volumes, Number of transmitters that can be taught in: max. 32, Technical data:, Socket radio chime, Protection class: IP20, Supply voltage: 230 V AC / 50 Hz, Socket radio chime H x W x D mm: 122 x 75 x 38, permissible ambient temperature: -20 to +35 °C, H x W x D: 71.4 x 71.4 x 40 mm, plug-in radio transmitter board RTS9004E, protection class: IP20, supply voltage: 24 V, built-in transmitter H x W x D mm: 35 x 26 x 8, permissible ambient temperature: -5 to +40 °C
| Property | Value |
| Installation technology: | Bus system |
| Function: | signaling |
| Interface design: | radio |
| Mounting type: | Surface-mounted |
