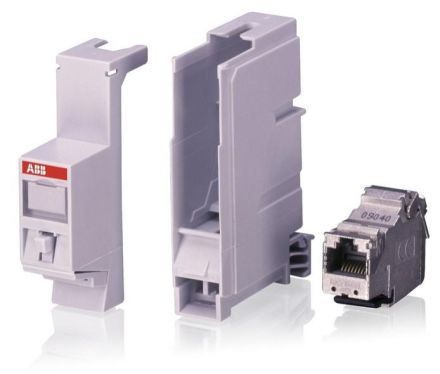

The IP patch module consists of an RJ-45 module and a mounting adapter for fastening to the top hat rail.
IP patch module, REG The IP patch module consists of an RJ-45 module and a mounting adapter for fastening to the top hat rail. Patch module (module and mounting adapter) for DIN rail mounting, 1 TE, Cat.6A, Class EA. Module: 1 x RJ 45 socket, die-cast zinc design, nickel-plated housing surface, fully shielded design. Mounting adapter: plastic. Functions: -defined earth connection using standard flat plug connectors possible on the module -RJ45 angled outlet (approx. 45°) -Captive cover cap -Can be individually labeled using a label holder -360° strain relief and shielding -Dust protection cap on the module (removable) -Installation without special pliers/tools -Suitable for PoE+ (Power over Ethernet), in accordance with IEEE 802.3at -Suitable for wire diameters AWG 22-24 -Bending radius-optimized feed of the connection cables (30°) -Color code according to EIA/TIA 568 A and B Transmission rate Cat.6A compliant, for use in 10 Gigabit Ethernet networks (transmission bandwidth up to 500 MHz) Insulation class II (without ground connection) DIN EN 61140 I (with ground connection) DIN EN 61140 Protection classIP 20, DIN EN 60 529 StandardsDIN EN 50173-1:2003-06, Category 6 ISO/IEC 11 801 A2:2010 Cat.6A, Class EA, shielded Colorlight gray (similar to RAL 7035) Installationon 35 mm mounting rail, DIN EN 60 715 Width1 HP 18 mm ManufacturerABB STOTZ-KONTAKT TypeIPM/S 1.1
