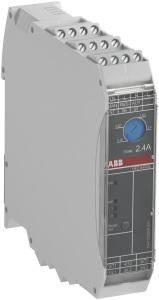

ABB Stotz-Kontakt HF2.4-ROL-24VDC , HF2.4-ROL Electronic compact starter 24V DC, trip class 10A, 0.18-2.4 A , 1SAT125000R1011

ABB Stotz-Kontakt HF2.4-ROL-24VDC , HF2.4-ROL Electronic compact starter 24V DC, trip class 10A, 0.18-2.4 A , 1SAT125000R1011

In stock

SKU: 321654

Price on request

€208.47

€0

Overview

The electronic compact starters of the HF...ROL-24VDC series are hybrid starters for motors up to 3 kW / 400 V or resistive loads up to 9 A / 400 V in accordance with IEC/EN 60947-1, -4-2. They include the functions of reversing start and overload protection with very wide current setting ranges. The hybrid technology of semiconductors and bypass contacts makes HF starters particularly suitable for applications with frequent switching operations and is low in loss. The compactness and integrated design of the devices save space, reduce wiring errors and save time during installation.

Property	Value
Overload release current setting:	0.18 to 2.4 A
Voltage type for actuation:	DC
Main circuit connection type:	Screw connection
Rated operating power at AC-3, 400 V:	0.75 kW
Rated operating current Ie:	2.4 A
Rated control supply voltage Us at DC:	24 V
With short-circuit release:	no
Protection class (IP):	IP20
Supports protocol for SafetyBUS p:	no
Supports protocol for INTERBUS:	no
Supports protocol for CAN:	no
Supports protocol for ASI:	no
Design of electrical connection for auxiliary and control circuit:	screw connection
Supports protocol for Foundation Fieldbus:	no
Supports protocol for Data-Highway:	no
Supports protocol for MODBUS:	no
Trip class:	CLASS 10 A
Supports protocol for PROFINET IO:	no
Supports protocol for TCP/IP:	no
Supports protocol for SERCOS:	no
Temperature compensated overload protection:	yes
Supports protocol for EtherNet/IP:	no
Supports protocol for other bus systems:	no
Supports protocol for PROFINET CBA:	no
Type of motor starter:	Reversing starter
Rated operating current at AC-3, 400 V:	2.4 A
Supports protocol for SUCONET:	no
Rail mounting possible:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet:	no
Supports protocol for LON:	no
Supports protocol for DeviceNet Safety:	no
Ambient temperature, upper limit without restrictions:	80 °C
Rated operating power at AC-3, 230 V, 3-phase:	0.37 kW
Supports protocol for PROFIBUS:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for INTERBUS-Safety:	no
With transformer:	no
Number of command points:	16
Suitable for EMERGENCY STOP:	no
Number of indicator lights:	4
External reset possible:	yes
With fuse:	no
Protection class (NEMA):	1
Width:	22.5 mm
Height:	99 mm
Depth:	114.5 mm

Characteristics

With fuseNo

Rated operating current Ie2.4 A

External reset possibleYes

With transformerNo

Design of electrical connection for auxiliary and control circuitScrew connection

Type of motor starterReversing starter

Rated operating current at AC-3, 400 V2.4 A

With short-circuit releaseNo

Temperature-compensated overload protectionYes

Ambient temperature, upper limit without restrictions80 °C

Rated operating power at AC-3, 230 V, 3-phase0.37 kW

HABHF2.4-ROL-24VDC

Manufacturer

HAN1SAT125000R1011

GTIN4013614515552

Connection type main circuitScrew connection

Number of command posts16

Trigger classCLASS 10 A

Rated operational power at AC-3, 400 V0.75kW

Rated control supply voltage Us at DC24V

Width22.5 mm

Suitable for EMERGENCY STOPNo

Height99 mm

IP protection)IP20

Protection class (NEMA)1

Voltage type for actuationDC

Depth114.5 mm

Mounting rail possibleYes

Supports protocol for AS-Interface Safety at WorkNo

Supports protocol for ASINo

Supports protocol for CANNo

Supports data highway protocolNo

Supports protocol for DeviceNetNo

Supports protocol for DeviceNet SafetyNo

Supports protocol for EtherNet/IPNo

Supports protocol for Foundation FieldbusNo

Supports protocol for INTERBUSNo

Supports protocol for INTERBUS-SafetyNo

Supports protocol for LONNo

Supports protocol for ModbusNo

Supports protocol for PROFIBUSNo

Supports protocol for PROFINET CBANo

Supports protocol for PROFINET IONo

Supports protocol for PROFIsafeNo

Supports protocol for SERCOSNo

Supports protocol for SUCONETNo

Supports protocol for SafetyBUS pNo

Supports protocol for TCP/IPNo

Supports protocol for other bus systemsNo

Overload release current setting0.18 to 2.4A
