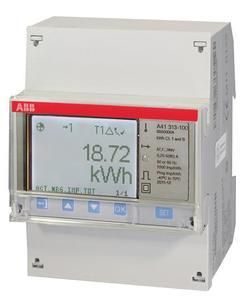

ABB Stotz-Kontakt A41 313-100 , A41 313-100 single phase meter, M-Bus silver, 1 phase, direct connection 80A , 2CMA170504R1000

In stock
SKU: 202051
€373.59
Into a basketIn the basketGo

Overview

AC meter for measuring single-phase networks via a direct connection for currents up to 80 A. A backlit display shows the following values with up to seven digits: active energy (class 1) and reactive energy (class 2) for import and export, power, current, voltage (LN), frequency, cos phi, power factor and apparent power. Communication can take place via the integrated M-Bus or infrared interface for connecting a KNX module. The energy meter has 2 permanently configured inputs and outputs. The output can be used either as a pulse output or an alarm output. Up to 25 alarm values (threshold values with a time delay) can be set here. The inputs are used to control the tariffs or to count external pulses. The resettable intermediate counter enables individual intervals to be measured. The meter also records up to 4 tariffs. The integrated clock enables time-controlled functions to be carried out. Calibration according to MID and approval according to IEC. The installation width is 4 DIN modules.

PropertyValue
Width in division units:4
Calibrated:yes
Pole type:1-phase
Meter type:electronic
Display type:digital
Mounting type:REG
Accuracy class:B
Protection class (NEMA):other
Maximum current (Imax):80 A
Nominal voltage (Un) NL:57.7 to 288 V
Pulse rate:1 to 999999 Imp/kWh (kvarh)
Protection class (IP):IP20
Frequency:50 to 60 Hz
Tariff version:Multi-tariff
Tariff control:external
Energy type:Active and reactive power
Nominal current (In):5 A
Version:Direct measurement
Measurement type load profile:no
EDL40 signature:no
With lock code:no
Pulse type:S0
Number of digits:7
Suitable for:Purchase/delivery
Backstop:yes
Approval:Measuring Instruments Directive
Pulse output:electrical
Interface design:M-Bus

Characteristics

Maximum current (Imax)80 A
Accuracy classB
HABA41 313-100
ManufacturerABB Stotz-Kontakt
HAN2CMA170504R1000
GTIN7392696705042
VersionDirect measurement
Implementation of the interfaceM-Bus
Width in pitch units4
Frequency50 to 60 Hz
Suitable forPurchase/Delivery
Mounting typeREG
Nominal current (In)5A
IP protection)IP20
Protection class (NEMA)Other
PermitMeasuring Instruments Directive
