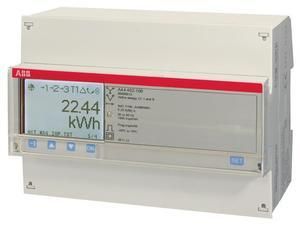

Three-phase meter for measuring a three-wire or four-wire three-phase network via a CTVT transformer connection (configurable transformer ratio for current and voltage) up to a maximum of 6 A. The following values are output on a backlit display with up to 7 digits: active energy (class 0, 5) and reactive energy (class 2) for import and export, power, currents, voltages (LL, LN), frequency, cos phi, power factor and apparent power (per phase and total). Communication can take place via the integrated RS485 or via the infrared interface. The energy meter has 2 permanently configured inputs and outputs. The output can be used either as a pulse output or as an alarm output (up to 25 alarm values). The inputs are used to control the tariffs or to count external pulses. The meter also records up to 4 tariffs. The integrated clock enables time-controlled functions to be carried out. The meter is calibrated according to MID and approved according to IEC. The installation width is 7 DIN modules.
