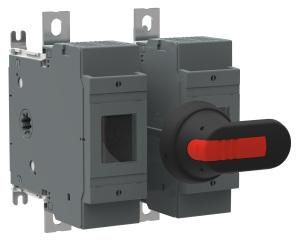

HABOS250D11P
HAN1SCA022752R8710
GTIN6417019244662
Connection type main circuitBolt connection
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchYes
Design of the actuating elementLong rotary handle
Conditional rated short-circuit current Iq80kA
Rated operational power at AC-23, 400 V250kW
Rated continuous current Iu250A
Rated short-time withstand current Icw8kA
Suitable for floor mountingNo
Suitable for front mountingNo
Suitable for busbar constructionYes
Suitable for fuse insertsNH0, NH1
Cable entryOther
Max. rated operating voltage Ue at AC1000V
With fuse monitoringNo
Equipped with connectorsYes
Motor drive integratedNo
Motor drive optionalNo
Number of poles2
Position of the actuatorIn front
Protection class (IP), frontIP20
