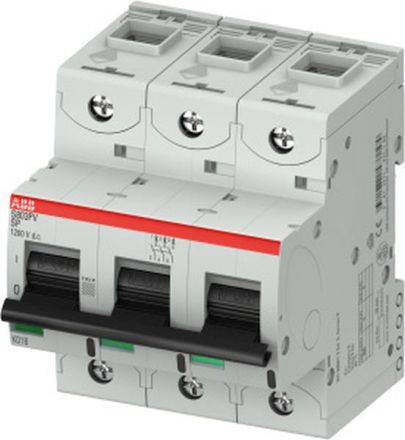

ABB Stotz-Kontakt S803PV-SP40, string fuse S803PV-SP40 1,200V DC, 40A, 3-pole, 2CCF019616R0001

ABB Stotz-Kontakt S803PV-SP40, string fuse S803PV-SP40 1,200V DC, 40A, 3-pole, 2CCF019616R0001

In stock

SKU: 468752

Price on request

€383.99

€0

Overview

The high-performance circuit breakers in the S800PV-SP series protect cables and lines from overload and short circuits. They have a rated short-circuit breaking capacity of 5 kA at 1,500 V DC for photovoltaic applications. With its thermal release mechanism, it offers equally effective protection against overload, as does its electromechanical release mechanism against short circuits. The S800PV complies with the IEC/EN 60947-2 standard and can be used for industrial purposes. Numerous approvals make it suitable for worldwide use and the extensive range of accessories makes it even more convenient to use. Thanks to the very fast arc extinguishing, your installation is optimally protected with the S800PV.

Property	Value
Tripping characteristic:	B
Rated current:	40 A
Rated voltage:	1500 V
Type of voltage:	DC
Width in modular spacing:	3
Number of poles (total):	3
Energy limitation class:	3
Additional equipment possible:	no
Overvoltage category:	3
Installation depth:	111 mm
Protection class (IP):	IP20
Rated switching capacity Icn according to EN 60898 at 230 V:	5 kA
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	5 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	5 kA
Rated switching capacity Icn according to EN 60898 at 400 V:	5 kA
Pollution degree:	2
Switching neutral conductor:	no
Number of protected poles:	3
Suitable for flush-mounted installation:	no
Rated insulation voltage Ui:	1500 V
Rated impulse withstand voltage Uimp:	8 kV
Ambient temperature during operation:	-25 to 60 °C
Connectable conductor cross-section, stranded:	0 to 70 mm²
Connectable conductor cross-section, solid:	0 to 50 mm²
