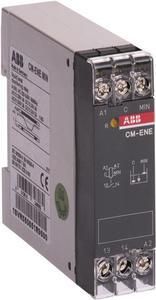

ABB Stotz-Kontakt CM-ENE MIN , CM-ENE MIN level relay 1S, 110-130VAC , 1SVR550850R9500

In stock
SKU: 197433
€73.55
Into a basketIn the basketGo

Overview

Level monitoring relays from ABB for controlling and regulating the levels and mixing ratios of electrically conductive liquids. Single function and multi-function monitoring relays are available, which can be used for overflow and dry-running protection, filling and emptying, max. and min. alarms or any combination of these functions. A wide range of accessories is also available.

PropertyValue
Number of contacts as normally open:1
Design of the electrical connection:screw connection
Physical measuring principle:conductive
Type of voltage for actuation:AC
Width:22.5 mm
Height:78 mm
Depth:78.5 mm
With removable terminals:no
Number of electrode inputs:2
Response sensitivity adjustable:yes
Rated control supply voltage Us at AC 50 Hz:110 to 130 V
Rated control supply voltage Us at AC 60 Hz:110 to 130 V
Cascadable:no

Characteristics

HABCM-ENE MIN
ManufacturerABB Stotz-Kontakt
HAN1SVR550850R9500
GTIN4013614348068
Response sensitivity adjustableYes
Number of contacts as normally open1
Design of the electrical connectionScrew connection
Rated control supply voltage Us at AC 50 Hz110 to 130 V
Rated control supply voltage Us at AC 60 Hz110 to 130 V
Width22.5 mm
Height78 mm
With removable clampsNo
Voltage type for actuationAC
Depth78.5 mm
