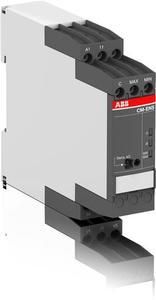

ABB Stotz-Kontakt CM-ENS.11P, level monitoring relay 1We, sensitivity 5-100kOhm empty, 24-240VAC/DC, 1SVR740850R0100

In stock
SKU: 197443
€114.94
Into a basketIn the basketGo

Overview

The CM-ENS.11P is a relay from the CM family for level monitoring and level control. The rated control supply voltage is 24 - 240 V AC/DC. Output: 1 changeover contact (250 V / 4A). It monitors and controls levels and mixing ratios of conductive liquids. It is used for filling and emptying applications, for dry-run protection of pumps and for signaling the status of the monitored level. Working current principle. The sensitivity can be adjusted using a potentiometer on the front. Various electrodes and a sealable transparent cover to protect against unauthorized adjustment of the settings are available as accessories. The device has maintenance-free and easy-to-use push-in terminals.

PropertyValue
Number of contacts as changeover contact:1
Design of the electrical connection:spring-loaded connection
Physical measuring principle:conductive
Type of voltage for actuation:AC/DC
Width:22.5 mm
Height:85.6 mm
Depth:103.7 mm
With removable terminals:no
Number of electrode inputs:3
Response sensitivity adjustable:yes
Rated control supply voltage Us at AC 50 Hz:24 to 240 V
Rated control supply voltage Us at AC 60 Hz:24 to 240 V
Rated control supply voltage Us at DC:24 to 240 V
Cascadable:yes

Characteristics

HABCM-ENS.11P
ManufacturerABB Stotz-Kontakt
HAN1SVR740850R0100
GTIN4013614502873
Response sensitivity adjustableYes
Number of contacts as changeover1
Design of the electrical connectionSpring-loaded connection
Rated control supply voltage Us at AC 50 Hz24 to 240 V
Rated control supply voltage Us at AC 60 Hz24 to 240 V
Rated control supply voltage Us at DC24 to 240 V
Width22.5 mm
Height85.6 mm
With removable clampsNo
Voltage type for actuationAC/DC
Depth103.7 mm
