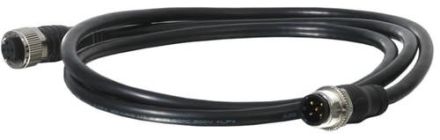

ABB Stotz-Kontakt M12-C134, cable 1 m, M12 female connector straight, 8 x 0.34 mm² and shielding, 2TLA020056R5000

In stock

SKU: 204040

Price on request

€75.67

€0

Overview

Various pre-assembled M12 cable types in different cable lengths are suitable for a quick and easy connection between sensors, light curtains, light grids, etc. or for connection to the evaluation units.

Property	Value
Rated current In:	2 A
Cable sheath color:	black
With LED display:	no
Cable sheath material:	Polyvinyl chloride (PVC)
Contact base material:	CuSn
Number of poles:	8
Design of electrical connection, field side:	M12
Type of plug contact, field side:	Female (socket)
Cable feed arrangement, field side:	straight
Design of electrical connection, housing side:	M12
Type of plug contact, housing side:	Male (plug)
Arrangement of cable feed, housing side:	straight
Cable length:	1 m
Halogen-free:	no
Shielded:	yes
Design of cable:	multi-core
Radiation-crosslinked:	no
Material of contact coating:	Ag
Permissible external cable temperature after installation without vibration:	0 to 80 °C
Permissible external cable temperature during installation/handling:	0 to 80 °C
Rated voltage:	300 V
Protection class (IP):	IP67
