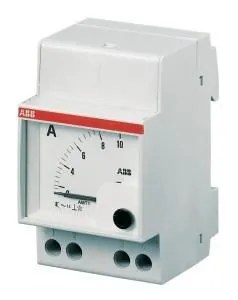

ABB Stotz-Kontakt AMT1/10, ammeter analog direct measurement, 10A, alternating current, 2CSM310040R1001

In stock
SKU: 203581
€49.12
Into a basketIn the basketGo

Overview

Modular analog ammeter for measuring AC current up to 10A in single-phase networks at a rated frequency of 50/60 Hz. The device has a power loss of 0.6VA and an accuracy class of 1.5. They are supplied with the appropriate scale. The terminals ensure secure connection up to 10mm. They comply with EN 60051.

PropertyValue
Nominal end value of the scale:10 A
Measuring range:0 to 10 A
Transformer connection:no
Accuracy class:1.5
Power loss:0.6 W
Voltage type:AC
Overcurrent scale:no
Certified:yes
Version:DIN rail
Suitable for Series installation:yes
Width:52.5 mm
Height:85 mm
Width in division units:3
Max. pointer deflection:90 °
Measuring system:Moving coil
Drag indicator:yes
Scale illumination:no

Characteristics

Accuracy class1.5
CertifiedYes
HABAMT1/10
ManufacturerABB Stotz-Kontakt
HAN2CSM310040R1001
GTIN8012542000105
VersionDIN rail
Width52.5 mm
Width in pitch units3
Suitable for series installationYes
Height85 mm
Voltage typeAC
