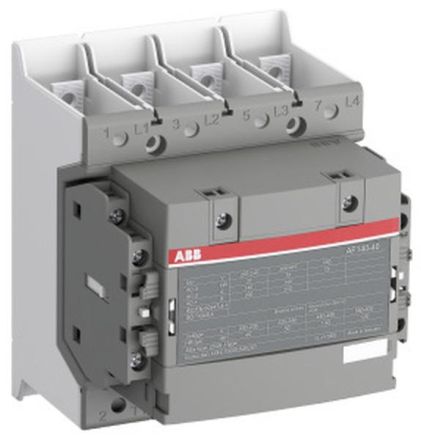

ABB Stotz-Kontakt AF116B-40-22-11, contactor 4-pole, 24-60V 50/60Hz AC - 20-60VDC 2S + 2Ö, screw connection, 1SFL427263R1122

In stock
SKU: 473437
€639.45
Into a basketIn the basketGo

Overview

The 4-pole AF116B contactors meet the latest standards for rolling stock and allow installation in passenger or driver's cabs of trains that frequently travel in tunnels or underpasses. They switch power circuits with motors, slightly inductive or non-inductive loads. They meet all important standards for rolling stock: IEC 60947-4-1, IEC 60947-5-1, IEC 60077-1/-2 and applicable parts of the EN 50155 standards, shock and vibration resistance according to IEC 61373 Cat. 1, Class B. They also achieve the highest levels of fire and smoke behavior while complying with the European standard EN 45545-2 (HL2 hazard levels) when mounted in groups. All integrated or subsequently fitted auxiliary break contacts are designed as mirror contacts according to IEC60947-5-1 Appendix L. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC. They also have built-in overvoltage protection and do not require any additional suppressors.

PropertyValue
Number of normally open contacts as main contacts:4
Number of auxiliary contacts as normally closed contacts:2
Number of auxiliary contacts as normally open contacts:2
Rated operating current Ie at AC-1, 400 V:145 A
Rated operating current Ie at AC-3, 400 V:116 A
Type of voltage for actuation:AC/DC
Rated control supply voltage Us at AC 50 Hz:24 to 60 V
Rated control supply voltage Us at AC 60 Hz:24 to 60 V
Rated control supply voltage Us at DC:20 to 60 V
Type of connection main circuit:Screw connection
Suitable for series installation:no

Characteristics

HABAF116B-40-22-11 4-pin 24-60V 50/60Hz
ManufacturerABB Stotz-Kontakt
HAN1SFL427263R1122
GTIN7320500511466
Connection type main circuitScrew connection
Number of auxiliary contacts as normally open2
Number of auxiliary contacts as normally closed2
Number of normally open contacts as main contacts4
Rated operational current Ie at AC-1, 400 V145 A
Rated operational current Ie at AC-3, 400 V116 A
Rated control supply voltage Us at AC 50 Hz24 to 60 V
Rated control supply voltage Us at AC 60 Hz24 to 60 V
Rated control supply voltage Us at DC20 to 60 V
Suitable for series installationNo
Voltage type for actuationAC/DC
