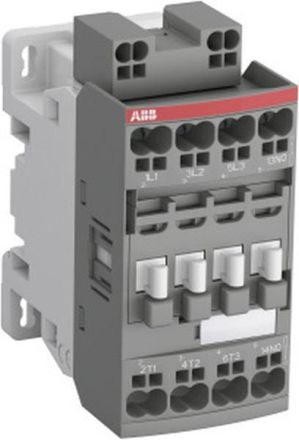

ABB Stotz-Kontakt AF12-30-10K-12 48-130V 50/60Hz 3p 5.5kW contactor, 1SBL157005R1210

ABB Stotz-Kontakt AF12-30-10K-12 48-130V 50/60Hz 3p 5.5kW contactor, 1SBL157005R1210

In stock

SKU: 472680

Price on request

€44.22

€0

Overview

The 3-pole AF12 contactors represent the compact series with AC/DC control and very wide coil voltage ranges. They switch power circuits with motors, slightly inductive or non-inductive loads. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC. They have integrated overvoltage protection and do not require any additional suppression elements. All integrated or subsequently attachable NC auxiliary contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Additional accessories such as timing elements, wiring aids and locking elements, etc., complete the range.

Property	Value
Number of normally open contacts as main contacts:	3
Number of auxiliary contacts as normally open contacts:	1
Rated operating power at AC-3, 400 V:	5.5 kW
Rated operating current Ie at AC-1, 400 V:	28 A
Rated operating current Ie at AC-3, 400 V:	12 A
Type of voltage for actuation:	AC/DC
Rated control supply voltage Us at AC 50 Hz:	48 to 130 V
Rated control supply voltage Us at AC 60 Hz:	48 to 130 V
Rated control supply voltage Us at DC:	48 to 130 V
Main circuit connection type:	Spring-loaded connection
Suitable for series installation:	no
Rated operating power NEMA:	3.7285 kW
