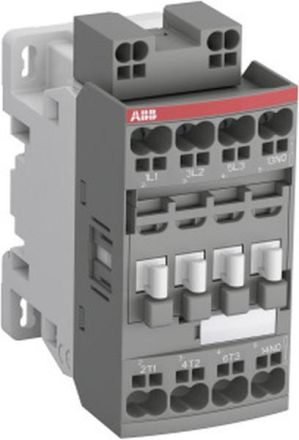

ABB Stotz-Kontakt AF16-30-01K-14 250-500V 50/60Hz 3p 7.5kW contactor, 1SBL177005R1401

ABB Stotz-Kontakt AF16-30-01K-14 250-500V 50/60Hz 3p 7.5kW contactor, 1SBL177005R1401

In stock

SKU: 472699

Price on request

€64.73

€0

Overview

The 3-pole AF16 contactors represent the compact series with AC/DC control and very wide coil voltage ranges. They switch power circuits with motors, slightly inductive or non-inductive loads. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC. They have integrated overvoltage protection and do not require any additional suppression elements. All integrated or subsequently attachable break auxiliary contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Additional accessories such as timing elements, wiring aids and locking elements, etc., complete the range.

Property	Value
Number of normally open contacts as main contacts:	3
Number of auxiliary contacts as normally closed contacts:	1
Rated operating power at AC-3, 400 V:	7.5 kW
Rated operating current Ie at AC-1, 400 V:	30 A
Rated operating current Ie at AC-3, 400 V:	18 A
Type of voltage for actuation:	AC/DC
Rated control supply voltage Us at AC 50 Hz:	250 to 500 V
Rated control supply voltage Us at AC 60 Hz:	250 to 500 V
Rated control supply voltage Us at DC:	250 to 500 V
Type of connection main circuit:	Spring-loaded connection
Suitable for series installation:	no
