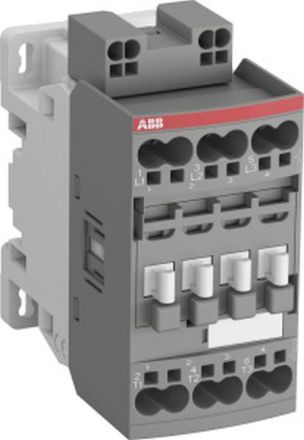

ABB Stotz-Kontakt AF26-30-00K-14 250-500V 50/60Hz 3p 11kW contactor, 1SBL237005R1400

The 3-pole AF26 contactors represent the compact series with AC/DC control and very wide coil voltage ranges. They switch power circuits with motors, slightly inductive or non-inductive loads. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC. They have integrated overvoltage protection and do not require any additional suppression elements. All subsequently attachable NC auxiliary contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Other accessories such as timing elements, wiring aids and locking elements, etc., complete the range.
