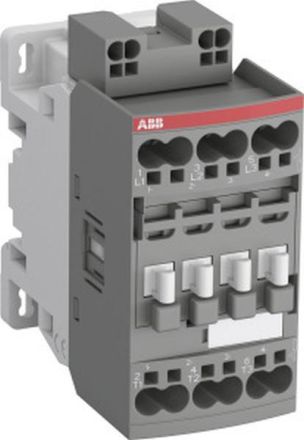

ABB Stotz-Kontakt AF38-30-00K-12 48-130V 50/60Hz 3p 18.5kW contactor, 1SBL297005R1200

The 3-pole AF38 contactors represent the compact series with AC/DC control and very wide coil voltage ranges. They switch power circuits with motors, slightly inductive or non-inductive loads. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC. They have integrated overvoltage protection and do not require any additional suppression elements. All subsequently attachable NC auxiliary contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Other accessories such as timing elements, wiring aids and locking elements, etc., complete the range.
