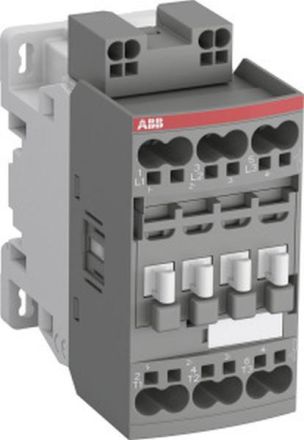

ABB Stotz-Kontakt AF38Z-30-00K-21 24-60V 50/60Hz 3p 18.5kW contactor, 1SBL296005R2100

The 3-pole AF38Z contactors are designed for switching power circuits with motors, slightly inductive or non-inductive loads. They have an electronic coil interface that can implement a very wide control voltage. This means that even large control voltage fluctuations can be handled. The contactors with coil code -21 enable direct control via 24V DC 500mA PLC outputs and require a very low holding power of only 1.7W. AFZ contactors can withstand short voltage dips and voltage drops (according to SEMI F47-0706). All subsequently attachable auxiliary break contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. They also have built-in overvoltage protection and do not require any additional suppression elements. Other accessories such as timing elements, wiring aids and locking elements, etc., complete the range.
