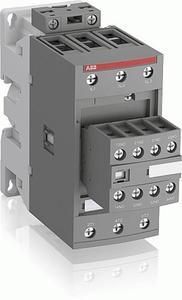

ABB Stotz-Kontakt AF40-30-22-11, contactor 24-60V50/60Hz 20-60VDC, 1SBL347001R1122

Contactors AF09 to AF96 from 4 to 45 kW AC-3 (400 V) represent the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without additional suppression elements required. This means that they can be used worldwide and only with limited variation. They switch power circuits with motors, slightly inductive or non-inductive loads. Flexibly interchangeable coil connection terminals allow connection from above, from below or from above and below. Attachable accessories are 1- and 4-pole auxiliary switches that can be plugged onto the front and 2-pole auxiliary switches that can be mounted on the right and left. For front coil connection, an additional auxiliary switch block with 1NO+1NC and coil connections A1 and A2 is available up to AF65. All auxiliary break contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Additional accessories such as timing elements, wiring aids and locking elements, etc., complete the range.
