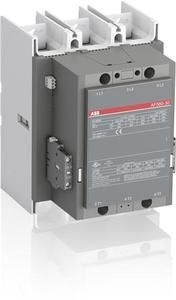

ABB Stotz-Kontakt AF580-30-22-70 , AF580-30-22 contactor 100-250V AC/DC , 1SFL617001R7022

Contactors AF116 to AF750 from 55 to 400 kW AC-3 (400 V) represent the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without additional suppression elements required. This means that they can be used worldwide and only with a small variation. AF116 to AF370 are also available in versions that can be controlled directly from a PLC; from AF400 onwards a PLC input is available as standard. AF contactors switch power circuits with motors, slightly inductive or non-inductive loads. Attachable accessories include up to 2 2-pole auxiliary switches that can be mounted on the right and left sides. All auxiliary break contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Additional accessories such as terminal covers, wiring aids and locking links, among others, complete the range.
