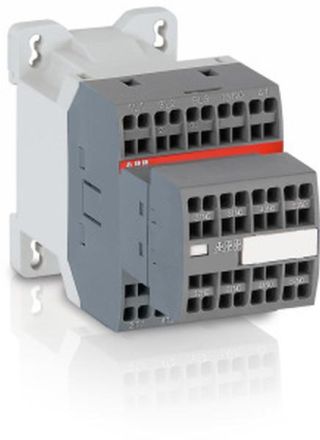

ABB Stotz-Kontakt AS09-30-32S-26 contactor, 1SBL101004R2632

ABB Stotz-Kontakt AS09-30-32S-26 contactor, 1SBL101004R2632

In stock

SKU: 458006

Price on request

€41.80

€0

Overview

Contactors AS/ASL 09 to AS/ASL 16 from 4 to 7.5 kW AC-3 (400 V) represent the very compact series with AC or DC control. They switch power circuits with motors, slightly inductive or non-inductive loads and have 3 main make contacts and 1 or 5 auxiliary contacts. Attachable accessories include quenching elements that can be plugged in from the side and 1-pole auxiliary switches that can be plugged in from the front. All auxiliary break contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Other accessories such as timers for delaying on and off, wiring aids and locking elements, etc., complete the range.

Property	Value
Number of normally open contacts as main contacts:	3
Number of auxiliary contacts as normally closed contacts:	2
Number of auxiliary contacts as normally open contacts:	3
Rated operating power at AC-3, 400 V:	4 kW
Rated operating current Ie at AC-1, 400 V:	20 A
Rated operating current Ie at AC-3, 400 V:	9 A
Type of voltage for actuation:	AC
Rated control supply voltage Us at AC 50 Hz:	230 V
Rated control supply voltage Us at AC 60 Hz:	230 V
Main circuit connection type:	Spring-loaded connection
Suitable for series installation:	no
Rated operating power NEMA:	3.7285 kW
