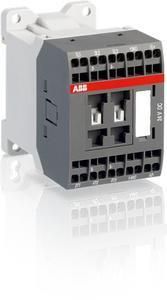

ABB Stotz-Kontakt ASL16-30-10S-81, contactor 24V DC, 1SBL123004R8110

In stock
SKU: 191380
€73.12
Into a basketIn the basketGo

Overview

Contactors AS/ASL 09 to AS/ASL 16 from 4 to 7.5 kW AC-3 (400 V) represent the very compact series with AC or DC control. They switch power circuits with motors, slightly inductive or non-inductive loads and have 3 main make contacts and 1 or 5 auxiliary contacts. Attachable accessories include quenching elements that can be plugged in from the side and 1-pole auxiliary switches that can be plugged in from the front. All auxiliary break contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Other accessories such as timers for delaying on and off, wiring aids and locking elements, etc., complete the range.

PropertyValue
Number of normally open contacts as main contacts:3
Number of auxiliary contacts as normally open contacts:1
Rated operating power at AC-3, 400 V:7.5 kW
Rated operating current Ie at AC-1, 400 V:22 A
Rated operating current Ie at AC-3, 400 V:15.5 A
Type of voltage for actuation:DC
Rated control supply voltage Us at DC:24 V
Connection type main circuit:Spring-loaded connection
Suitable for series installation:no
Rated operating power NEMA:7,457 kW

Characteristics

HABASL16-30-10S-81
ManufacturerABB Stotz-Kontakt
HAN1SBL123004R8110
GTIN3471523060210
Connection type main circuitSpring-loaded connection
Number of auxiliary contacts as normally open1
Number of normally open contacts as main contacts3
Rated operating power NEMA7,457 kW
Rated operational power at AC-3, 400 V7.5kW
Rated operational current Ie at AC-1, 400 V22A
Rated operational current Ie at AC-3, 400 V15.5A
Rated control supply voltage Us at DC24V
Suitable for series installationNo
Voltage type for actuationDC
ABB Stotz-Kontakt ASL16-30-10S-81, contactor 24V DC, 1SBL123004R8110
ABB Stotz-Kontakt ASL16-30-10S-81, contactor 24V DC, 1SBL123004R8110
€73.12
