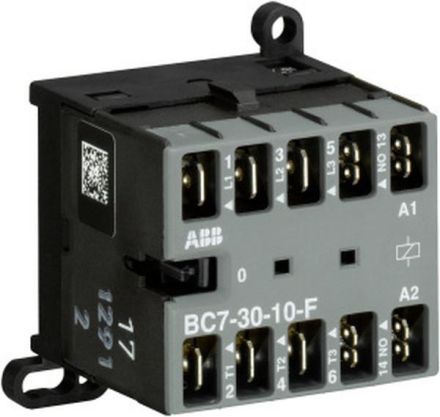

ABB Stotz-Kontakt BC7-30-10-F-05 220-240VDC miniature contactor, GJL1313003R0105

In stock

SKU: 453624

Price on request

€43.92

€0

Overview

Miniature contactors B/BC 6 and B/BC 7 of 4 and 5.5 kW AC-3 (400 V) represent a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. This and the wide range of contact and coil variants offer a very wide range of application options, even in unfavourable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Attachable accessories include suppressor elements and 2-pole auxiliary switches that can be plugged in on the side or front.

Property	Value
Number of normally open contacts as main contacts:	3
Number of auxiliary contacts as normally open contacts:	1
Rated operating power at AC-3, 400 V:	5.5 kW
Rated operating current Ie at AC-1, 400 V:	20 A
Rated operating current Ie at AC-3, 400 V:	12 A
Type of voltage for actuation:	DC
Rated control supply voltage Us at DC:	220 to 240 V
Connection type main circuit:	Flat plug connection
Suitable for series installation:	no
Rated operating power NEMA:	2.2371 kW
