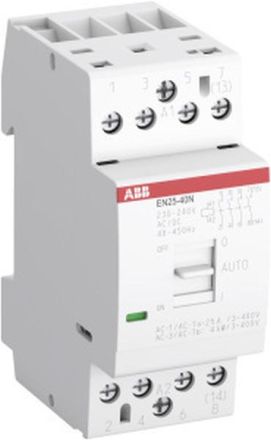

ABB Stotz-Kontakt EN25-40N-06, installation contactor 4S/0Ö, 230-240 V AC/DC day/night installation contactor, 1SAE232111R0640

In stock
SKU: 470453
€49.96
Into a basketIn the basketGo

Overview

4-pole contactors EN25..N with a width of 36 mm control 3-phase loads up to 25 A and are available with different contact assignments and coil voltages. They switch electric heaters, water heaters, motors for pumps, ventilation and other drives as well as lighting. Thanks to an integrated coil circuit, they work with both AC and DC control voltages. The devices are therefore completely hum-free and quiet when switching. EN25..N have an integrated switch for choosing between three operating modes: manually switched off (even when a control signal is present), automatic operation (normal contactor function) and manually switched on with a return to automatic operation as soon as the coil is next supplied with voltage. This offers numerous advantages: for example, during commissioning, a function test of the load circuit can be carried out even without a control signal, and the load circuit can also be switched off quickly and easily at any time when a control signal is present. An auxiliary switch that can be mounted on the left as an accessory, as well as sealing caps and a spacer complete the range. EN25..N have an installation design and meet the household standard EN61095, among others, so they are particularly suitable for installation in distribution boards.

PropertyValue
Type of operating voltage:AC/DC
Protection class (IP):IP20
Number of modular units:2
Rated operating current:25 A
Rated operating voltage:220 to 400 V
Additional equipment possible:yes
Slider for manual switching:yes
Type of actuating voltage:AC/DC
Installation depth:58 mm
Rated operating voltage:230 to 240 V
Usage category:7
Number of contacts as normally open:4

Characteristics

Rated operating current25 A
HAB4S/0Ö 230-240V AC/DC 4-pole day/night
ManufacturerABB Stotz-Kontakt
HAN1SAE232111R0640
GTIN4013614518249
Number of contacts as normally open4
Rated operating voltage220 to 400 V
Installation depth58 mm
IP protection)IP20
Additional equipment possibleYes
