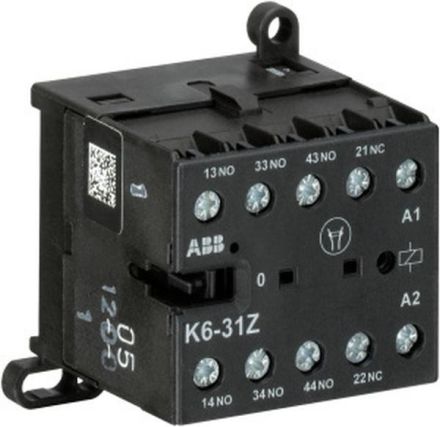

ABB Stotz-Kontakt K6-31Z-22 60V 40-450Z miniature auxiliary contactor, GJH1211001R2312

In stock
SKU: 453585
€44.74
Into a basketIn the basketGo

Overview

K/KC 6 miniature auxiliary contactors fulfill relay functions and represent a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. The 4-pole devices offer a wide range of application options, even in unfavorable space conditions. With their AC or DC control, they switch control circuits or load circuits up to 4 A (230 V). Attachable accessories are quenching elements and 2-pole auxiliary switches that can be plugged in on the side or front.

PropertyValue
Number of auxiliary contacts as normally open:3
Number of auxiliary contacts as normally closed:1
Rated operating current Ie, 400 V:3 A
Rated control supply voltage Us at AC 50 Hz:60 V
Rated control supply voltage Us at AC 60 Hz:60 V
Mounting type:DIN rail
Interface:no
Voltage type for actuation:AC
With LED display:no
Connection type auxiliary circuit:screw connection
Manual operation possible:no

Characteristics

Manual operation possibleNo
HABK6-31Z-22 60V 40-450Z
ManufacturerABB Stotz-Kontakt
HANGJH1211001R2312
GTIN4013614049170
Connection type auxiliary circuitScrew connection
Number of auxiliary contacts as normally open3
Number of auxiliary contacts as normally closed1
Rated operational current Ie, 400 V3 A
Rated control supply voltage Us at AC 50 Hz60V
Rated control supply voltage Us at AC 60 Hz60V
With LED displayNo
Mounting typeDIN rail
InterfaceNo
Voltage type for actuationAC
