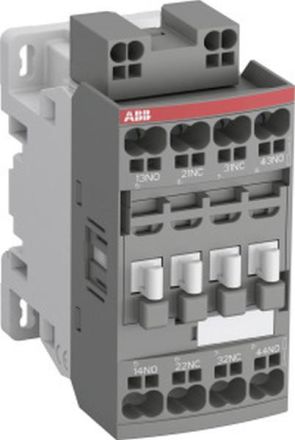

ABB Stotz-Kontakt NFZ31EK-22 48-130V 50/60Hz DC 3S+1Ö auxiliary contactor, 1SBH136005R2231

In stock
SKU: 472603
€51.55
Into a basketIn the basketGo

Overview

NFZ auxiliary contactors are used to switch auxiliary and control circuits. They have an electronic coil interface that can implement a very wide control voltage. Only four coils cover control voltages between 24...250 V 50/60 Hz or 12...250 V DC. The large control voltage range of the coils means that large control voltage fluctuations can be handled. NFZ auxiliary contactors enable direct control via 24V DC 250mA PLC outputs and require a very low holding power of just 1.7W. NFZ auxiliary contactors can withstand short voltage dips and voltage drops (according to SEMI F47-0706) between 24...250 V 50/60 Hz. They have built-in overvoltage protection and do not require additional suppressors - Poles: 4-pole auxiliary contactors (mechanically linked auxiliary contacts according to Annex L of IEC 60947-5-1 and including the 'positive guide' symbol on the side of the auxiliary contactor) - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available.

PropertyValue
Number of auxiliary contacts as normally open:3
Number of auxiliary contacts as normally closed:1
Rated operating current Ie, 400 V:3 A
Rated control supply voltage Us at AC 50 Hz:48 to 130 V
Rated control supply voltage Us at AC 60 Hz:48 to 130 V
Rated control supply voltage Us at DC:48 to 130 V
Mounting type:DIN rail/screw
Interface:no
Voltage type for actuation:AC/DC
With LED display:no
Connection type auxiliary circuit:Spring-loaded connection
Manual operation possible:no

Characteristics

Manual operation possibleNo
HABNFZ31EK-22 48-130V 50/60Hz DC 3S+1NC
ManufacturerABB Stotz-Kontakt
HAN1SBH136005R2231
GTIN3471523153424
Connection type auxiliary circuitSpring-loaded connection
Number of auxiliary contacts as normally open3
Number of auxiliary contacts as normally closed1
Rated operational current Ie, 400 V3 A
Rated control supply voltage Us at AC 50 Hz48 to 130 V
Rated control supply voltage Us at AC 60 Hz48 to 130 V
Rated control supply voltage Us at DC48 to 130 V
With LED displayNo
Mounting typeDIN rail/screw
InterfaceNo
Voltage type for actuationAC/DC
