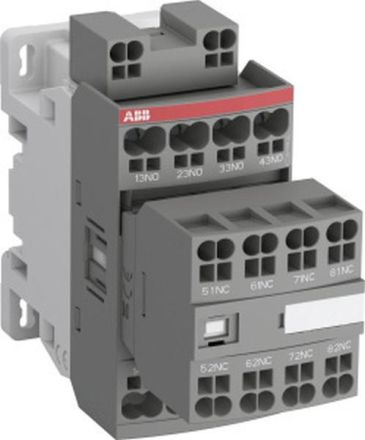

ABB Stotz-Kontakt NFZ44EK-21 24-60V 50/60Hz 20-60VDC 4S+4Ö auxiliary contactor, 1SBH136005R2144

In stock
SKU: 472597
€61.67
Into a basketIn the basketGo

Overview

The 8-pole NFZ auxiliary contactors are used to switch auxiliary and control circuits (positively guided contacts available). They have an electronic coil interface that can implement a very wide control voltage. This means that even large control voltage fluctuations can be handled. The auxiliary contactors enable direct control via 24V DC 500mA PLC outputs and require a very low holding power of only 1.7W. NFZ auxiliary contactors can withstand short voltage dips and voltage drops (according to SEMI F47-0706) between 24...250 V 50/60 Hz. They have built-in overvoltage protection and do not require any additional suppressors. A wide range of accessories is also available.

PropertyValue
Number of auxiliary contacts as normally open contacts:4
Number of auxiliary contacts as normally closed contacts:4
Rated operating current Ie, 400 V:3 A
Rated control supply voltage Us at AC 50 Hz:24 to 60 V
Rated control supply voltage Us at AC 60 Hz:24 to 60 V
Rated control supply voltage Us at DC:20 to 60 V
Mounting type:DIN rail/screw
Interface:no
Voltage type for actuation:AC/DC
With LED display:no
Connection type auxiliary circuit:Spring-loaded connection
Manual operation possible:no

Characteristics

Manual operation possibleNo
HABNFZ44EK-21 24-60V 50/60Hz 20-60VDC 4S+4Ö
ManufacturerABB Stotz-Kontakt
HAN1SBH136005R2144
GTIN3471523153912
Connection type auxiliary circuitSpring-loaded connection
Number of auxiliary contacts as normally open4
Number of auxiliary contacts as normally closed4
Rated operational current Ie, 400 V3 A
Rated control supply voltage Us at AC 50 Hz24 to 60 V
Rated control supply voltage Us at AC 60 Hz24 to 60 V
Rated control supply voltage Us at DC20 to 60 V
With LED displayNo
Mounting typeDIN rail/screw
InterfaceNo
Voltage type for actuationAC/DC
ABB Stotz-Kontakt NFZ44EK-21 24-60V 50/60Hz 20-60VDC 4S+4Ö auxiliary contactor, 1SBH136005R2144
ABB Stotz-Kontakt NFZ44EK-21 24-60V 50/60Hz 20-60VDC 4S+4Ö auxiliary contactor, 1SBH136005R2144
€61.67
