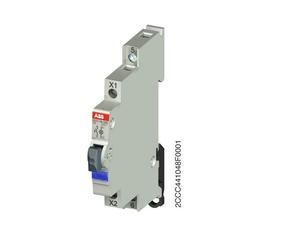

ABB Stotz-Kontakt E217-16-01G220, illuminated button blue 16A 1Ö 250VAC with LED 60-220VDC, 2CCA703259R0001

In stock
SKU: 197849
€22.30
Into a basketIn the basketGo

Overview

The buttons with LEDs are equipped with a contact (normally open or normally closed). The different colors of the LED lights are based on DIN60204-1 (color coding of control elements and their meaning). The module width is always 9 mm (0.5 HP). The buttons with LEDs are ideal for signaling or reporting the current operating status of the controlled consumers.

PropertyValue
Width in pitch units:0.5
With signal lamp:yes
Voltage type:DC
Color of the cap:blue
Light source:LED
Lamp base:not applicable
Max. Lamp power:1.5 W
Protection class (IP):IP20
Button color:gray
Installation depth:75 mm
Lamp voltage:230 to 250 V
Switching voltage:250 V
Switching current:16 A
Number of contacts as breaker:1

Characteristics

Color of the capBlue
Max. lamp power1.5 W
HABE217-16-01G220
ManufacturerABB Stotz-Kontakt
HAN2CCA703259R0001
GTIN7612270939220
Number of contacts as opener1
Width in pitch units0.5
Installation depth75 mm
Button colorGray
Lamp voltage230 to 250 V
LampsLED
With signal lampYes
IP protection)IP20
Voltage typeDC
