Catalog

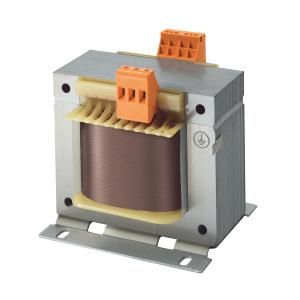

ABB Stotz-Kontakt TM-C 50/115-230, control transformer single-phase, 50VA, sec. 115-230V AC, 2CSM207213R0801

In stock
SKU: 321349
€49.86
Into a basketIn the basketGo

Overview

Single-phase control transformer for the continuous supply of control circuits, such as commands, signaling, interlocks, etc. Primary supply with 230V/400V AC with a rated power of 50 VA to 2500 VA depending on the type. Double secondary output with 12-24 V or 115-230 V and full power tap on all outputs. Tested according to reference standard CEI EN 61558-2-2.

PropertyValue
Rated apparent power:50 VA
Height:90 mm
Width:80 mm
Depth:74 mm
Primary voltage 1:230 to 400 V
Secondary voltage 1:115 to 230 V
Protection class (IP):IP00
Suitable for series installation:yes
Short-circuit proof:no
Designed as an isolating transformer:no
Toroidal core:no
Insulating material class according to IEC 85:F
Suitable for circuit board mounting:no
Designed as a safety transformer:no
Designed as an economy transformer:no
Conductor material:copper

Characteristics

Short circuit proofNo
Conductor materialCopper
Secondary voltage 1115 to 230 V
HABTM-C 50/115-230
ManufacturerABB Stotz-Kontakt
HAN2CSM207213R0801
GTIN8012542072133
Width80 mm
Suitable for series installationYes
Height90 mm
IP protection)IP00
Depth74 mm
